Item # bci2380600

The Craftmade MOR54ESP3 has been discontinued

** See similar or replacement items below **

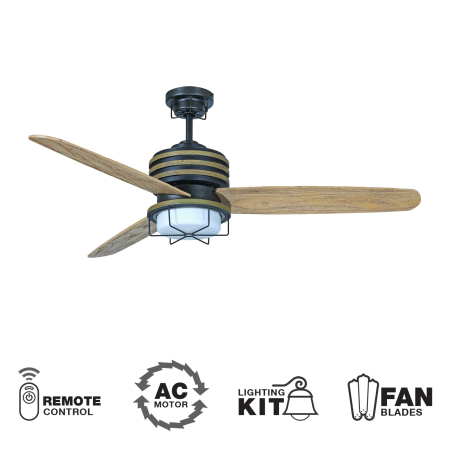

Craftmade 54" 3 Blade Outdoor Ceiling Fan - Blades, Remote and Light Kit Included

Model: MOR54ESP3

Discontinued
    We still have product details and accessories, scroll down to see them!

    Product Overview

    Included Components:

    • Remote Control
    • Blades (3)
    • (2) Incandescent Mini Candelabra (E11) bulbs included
    • Glass Guard for protecting light
    • Shade
    • Wireless Remote and Receiver
    • Light Kit

    Features:

    • Limited Lifetime Warranty
    • Remote control
    • For Damp Location installation
    • For outdoor installation

    Blade Specifications:

    • Blade Span: 54"
    • Number of Blades: 3
    • Blade Pitch: 13°
    • Blades Included: Yes
    • Blades Reversible: No
    • Wood

    Motor Specifications:

    • Motor Type: AC Induction
    • Reversible Motor: Yes
    • CFM (High): 5344.79
    • RPM (High): 175
    • Voltage: 120 V

    Sloped Ceiling Specifications:

    • For ceilings with slope from 35° to 45°, use the 45AD angled ceiling adapter

    High or Low Ceiling Specifications:

    • The MOR543 is designed for installation on standard 8 to 9 foot ceilings. If your ceiling is higher, you'll need to purchase an additional downrod. The rule of thumb is that ceiling fans should have a minimum of 7 feet and a maximum of 9 feet of clearance between the bottom of the fan and the floor in order to circulate air efficiently. If you have a low ceiling, purchase the CMA flush mount adapter to reduce the hanging height of your fan.

    Suggested Downrod Lengths:

    • 9 Foot Ceiling: 6" - 12"
    • 10 Foot Ceiling: 12" - 18"
    • 11 Foot Ceiling: 18" - 24"
    • 12 Foot Ceiling: 24" - 36"
    • 13 Foot Ceiling: 36" - 48"
    • 14 Foot Ceiling: 48" - 60"
    • 15 Foot Ceiling: 60" - 72"
    • For ceiling heights greater than 15 feet, you'll need to purchase the downrod Coupler to join two downrods together.

    This product is listed under the following manufacturer number(s):


    *Denotes a finish or option that has been discontinued.

    Manufacturer Resources

    Dimensions and Measurements

    Blade Pitch
    13 Degrees
    Blade Span
    54 in.
    CFM (High)
    5344.79
    CFM (Low)
    2008.201
    Diameter
    54 in.
    Downrod Size(s)
    8 in.
    Height
    17.04 in.
    Width
    54 in.

    Included Components

    Blades Included
    Yes
    Bulb Included
    Yes
    Controller Included
    Yes
    Downrod(s) Included
    Yes
    Includes Glass Guard
    Yes
    Includes Receiver
    Yes
    Light Kit Included
    Yes
    Shade
    Yes
    Uplight Included
    No

    Characteristics and Features

    Base Color
    Brown, White
    Blade Finish
    Medium Wood
    Bulb Base
    Mini Candelabra (E11)
    Bulb Shape
    B10
    Bulb Type
    Incandescent
    Control Type
    Remote
    Dimmable
    Yes
    Fan Blade Material
    Wood
    Fan Type
    Hanging
    Light Direction
    Ambient Lighting
    Light Kit Compatible
    No
    Low Ceiling Adaptable
    No
    Motor
    AC Induction
    Number of Blades
    3
    Number of Bulbs
    2
    Reversible Blades
    No
    Reversible Motor
    Yes
    Shade Color
    White
    Shade Material
    Glass
    Shade Shape
    Round
    Shade Type
    Frosted
    Theme
    Nautical

    Electrical and Operational Information

    Energy Efficiency (CFM / Watt)
    28.634
    RPM (High)
    175
    RPM (Low)
    65.58
    Speeds
    3
    Voltage
    120
    Wattage
    186.66
    Watts Per Bulb
    60

    Warranty and Product Information

    Collection
    Moorestad
    Energy Star
    No
    Location Rating
    Damp Location
    Manufacturer Warranty
    Limited Lifetime
