Item # bci1021146
The Craftmade TR52BN5 has been discontinued
** See similar or replacement items below **

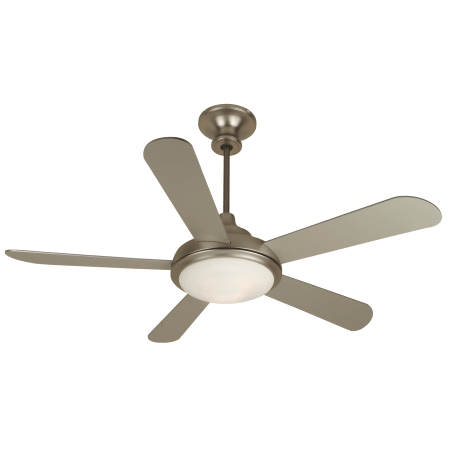

Craftmade 52" 5 Blade Indoor Ceiling Fan - Blades, Remote and Light Kit Included
Model: TR52BN5
from the Triumph Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Product Overview
This product has additional required/recommended options. To configure, add to your cart.
- Down Rods Recommended
Included Components:
- Remote Control
- Blades (5)
- (1) Halogen Specialty bulb included
- Wireless Remote and Receiver
- Light Kit
Features:
- Lifetime Limited Warranty
- Remote control
Blade Specifications:
- Blade Span: 52"
- Number of Blades: 5
- Blade Pitch: 14°
- Blades Included: Yes
Motor Specifications:
- Amperage: 0.7 A
- Motor Type: AC Induction
- 188mm x 15mm
- Reversible Motor: Yes
- CFM (High): 5690
- RPM (High): 210
- Voltage: 120 V
Sloped Ceiling Specifications:
- For ceilings with slope from 35° to 45°, use the 45AD angled ceiling adapter
High or Low Ceiling Specifications:
- The triumph is designed for installation on standard 8 to 9 foot ceilings. If your ceiling is higher, you'll need to purchase an additional downrod. The rule of thumb is that ceiling fans should have a minimum of 7 feet and a maximum of 9 feet of clearance between the bottom of the fan and the floor in order to circulate air efficiently. If you have a low ceiling, purchase the CMA flush mount adapter to reduce the hanging height of your fan.
Suggested Downrod Lengths:
- 9 Foot Ceiling: 6" - 12"
- 10 Foot Ceiling: 12" - 18"
- 11 Foot Ceiling: 18" - 24"
- 12 Foot Ceiling: 24" - 36"
- 13 Foot Ceiling: 36" - 48"
- 14 Foot Ceiling: 48" - 60"
- 15 Foot Ceiling: 60" - 72"
- For ceiling heights greater than 15 feet, you'll need to purchase the downrod Coupler to join two downrods together.
Additional Craftmade Links
This product is listed under the following manufacturer number(s):
- Craftmade TR52BN5*
Brushed Nickel - Craftmade TR52OB5*
Oiled Bronze - Craftmade TR52SS5*
Stainless Steel - Craftmade TR52W5*
White
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Blade Pitch
14 Degrees
Blade Span
52 in.
CFM (High)
5690
Height
13, 19 in.
Motor Size
188 mm
Width
52 in.
Included Components
Blades Included
Yes
Bulb Included
Yes
Controller Included
Yes
Downrod(s) Included
Yes
Light Kit Included
Yes
Characteristics and Features
Base Color
Bronze, Nickel, Stainless Steel, White
Bulb Base
Specialty
Bulb Type
Halogen
Control Type
Remote
Fan Type
Hanging
Flush Mounting
yes
Light Direction
Down Lighting
Light Kit Compatible
Yes
Low Ceiling Adaptable
Yes
Motor
AC Induction
Number of Blades
5
Number of Bulbs
1
Reversible Motor
Yes
Style
Modern
Theme
Modern, Art Deco, Contemporary, Industrial
Electrical and Operational Information
Amperage
0.7
Energy Efficiency (CFM / Watt)
79
RPM (High)
210
RPM (Low)
78
Speeds
3
Voltage
120
Wattage
146
Watts Per Bulb
75
Warranty and Product Information
Collection
Triumph
Energy Star
No
Manufacturer Warranty
Limited Lifetime
