Item # bci3820243

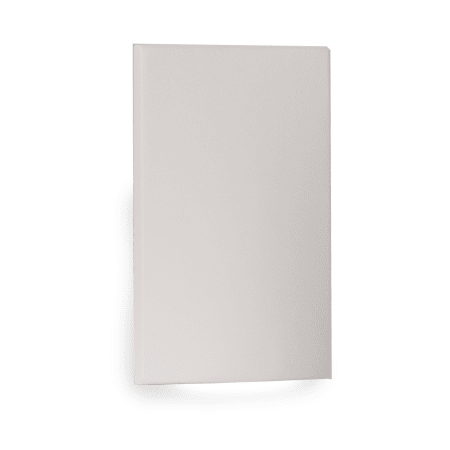

WAC Lighting 5" Tall Vertical LED Step and Wall Light with Amber Lens - 12 Volt

Model: 4041-AMWT

$101.95
Finish: Choose Finish
  • Black
    Black
    $101.95
    173 In Stock
  • Bronze
    Bronze
    $101.95
    88 In Stock
  • White
    White
    $101.95
    115 In Stock

Free Shipping!

115 In Stock

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

WAC Lighting Step and Wall Lights are designed to seamlessly blend into any architecture featuring a sleek interchangeable magnetic faceplate with no visible hardware. These luminaires offer enhanced energy efficient functionality and optimized light output to adequately illuminate stairs, walls and walkways with little or no glare. Light engine is IP66 sealed for both indoor and outdoor applications.

Features:

  • Die-cast aluminum construction in multiple finishes
  • Marine grade rated stainless steel (SS finish lifetime warranty) is recommended for coastal environments
  • Magnetic faceplate installation with tamper proof non-visible hardware
  • 12V Magnetic or Electronic transformer required
  • WAC Lighting 9075-TRN-SS or 9150-TRN-SS transformer recommended
  • CEC Title 24 Compliant
  • Wet location rated to IP66 standards for indoor and outdoor installations, No UV or heat radiation
  • Smooth and continuous ELV dimming to 10% with an Electronic Low Voltage dimmer
  • Replaceable LED Module available, Power Consumption: 3.5W, CRI: 90, 50,000 hours rated life
  • Standards: UL & cUL 1598 and IP66 Rated for Wet Locations
  • Covered under a 10 years functional and 2 years finish manufacturer warranty

Dimensions:

  • Height: 5"
  • Width: 3-1/8"
  • Beam Spread: Flood Beam
  • Product Weight: 1.02 lbs

Electrical Specifications:

  • Wattage: 2
  • Number of Light Source(s): 1
  • Lumens: 38
  • Color Rendering Index (CRI): 90
  • Average Hours: 60000
  • Voltage: 12

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Extension
1.75 in.
Height
5 in.
Nominal Width
3 in.
Product Weight
1.02 lbs.
Width
3.13 in.

Included Components

Bulb Included
Yes

Characteristics and Features

Bulb Base
Integrated LED
Bulb Type
LED
Dimmable
Yes
Hardscape Light Type
Step Lights
LED
Yes
Light Direction
Down Lighting
Material
Aluminum
Number of Light Source(s)
1
Replaceable LED Module
Yes
Theme
Contemporary

Electrical and Operational Information

Average Hours
60000 Hours
Color Rendering Index (CRI)
90
Lumens
38
Power Source
Hardwired
Voltage
12
Voltage Type
Low Voltage (12-24V)
Wattage
2
Watts Per Bulb
2

Warranty and Product Information

ADA
Yes
Certifications
UL
Collection
WAC Landscape
Country Of Origin
China
Dark Sky
No
Energy Star
No
Location Rating
Wet Location
Manufacturer Warranty
10 Year Limited, 2 Year Finish
Title 24
Yes
